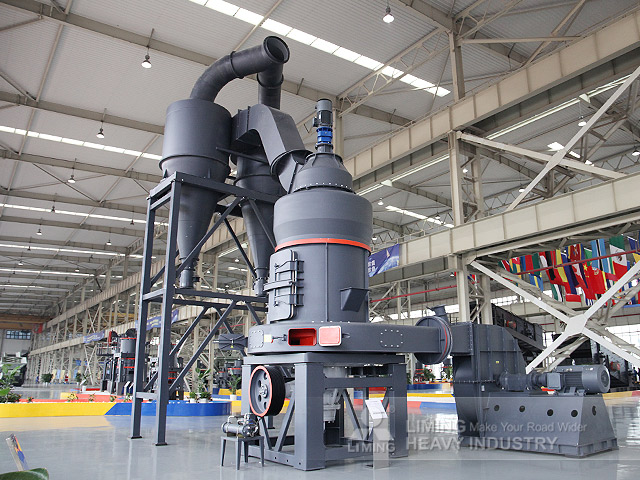

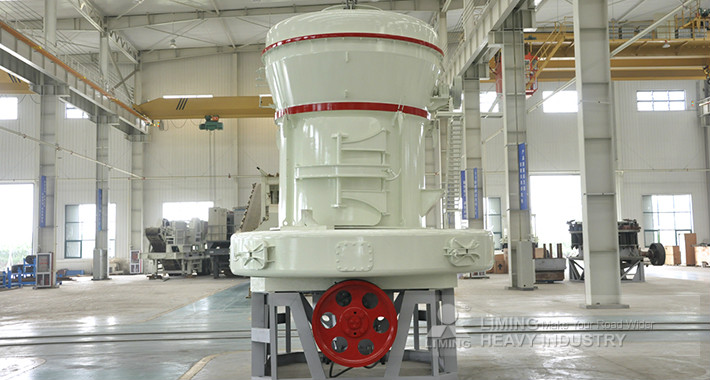

MTW Series Trapezium Mill

Capacity: 3.5-45TPH

MTW European Type Trapezium Mill, the upgraded type of Raymond Mill, has a large market share in the grinding industry. Whether bevel gear overall drive, inner automatic thin-oil lubricating system or arc air channel, these patent technology makes grinding mill machine advanced, humanized and green.

Get Price Now

8618736029547

What MTW Series Trapezium Mill Plant Can do ?

Bentonite

Plaster

calcium carbonate

Processed Materials: Limestone, calcite, calcium carbonate, barite, talc, gypsum, bentonite, quartz, feldspar, talc, marble, bauxite, slag, dolomite, granite, clay, kaolin, basalt, graphite, coal, petroleum coke, gold ore, etc.

Output Size(mm): such as 0-3mm Coarse Powder, 20-400mesh（0.8-0.038mm, 400-3250mesh（38-3μm）, 3250mesh Powder.

Widely Applications

limestone desulfurization in power plant, metallurgy, non-metallic mineral powder making, non-metallic ore pulverizing, heavy calcium carbonate processing, building materials and chemical industry, coal, ceramics, cement, etc.

Top 5 Advantages of MTW Series Trapezium Mill

Efficient. Bevel gear overall drive reduces noise and increases drive efficiency and capacity.

Inner automatic thin-oil lubricating system makes better lubrication for bearings.

Economical. Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity.

Advanced. Arc air channel reduces energy consumption and intelligent control ensures better operation.

Environmentally friendly. Unique air recycling system and dust collector make clean environment.

Technical Data

Model Specification Name	MTW110	MTW138	MTW175	MTW215
Quantity of roller (PCS)	4	4	5	5
Inner diameter of ring (mm)	Ф1100	Ф1380	Ф1750	Ф2150
Main shaft speed (rpm)	980	990	740	740
Max. Feeding size(mm)	30	35	40	50
Output fineness(mm)	1.6～0.045 The fineness is 0.038	1.6～0.045 The fineness is 0.038	1.6～0.045 The fineness is 0.038	1.6~0.075
Capacity(tph)	3.5～10	6.5～15	11～22	30-45
Dimension(L×W×H)(mm)	8425×5041×8642	11050×10010×10010	12850×10080×9980	14730×10860×10341
Weight(t)	18	28.5	38	92
