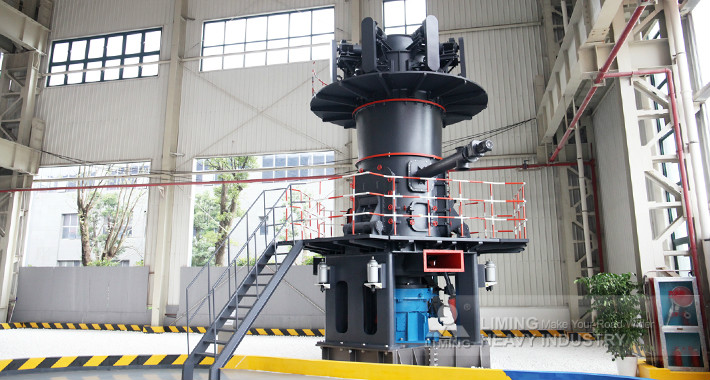

LUM Vertical Roller Mill

Capacity: 5-18TPH

LUM series superfine vertical roller grinding mills can be widely used to process the superfine dry powder of Non-metallic ores such as calcite, marble, limestone, talc, barite, dolomite, etc. The grinding roller doesn’t contact with millstone usually, which makes abrasion little and service life longer.

Get Price Now

8618736029547

What LUM Vertical Roller Mill Plant Can do ?

Bentonite

Plaster

calcium carbonate

Processed Materials: Limestone, calcite, calcium carbonate, barite, talc, gypsum, bentonite, quartz, feldspar, talc, marble, bauxite, slag, dolomite, granite, clay, kaolin, basalt, graphite, coal, petroleum coke, gold ore, etc.

Output Size(mm): such as 0-3mm Coarse Powder, 20-400mesh（0.8-0.038mm, 400-3250mesh（38-3μm）, 3250mesh Powder.

Widely Applications

limestone desulfurization in power plant, metallurgy, non-metallic mineral powder making, non-metallic ore pulverizing, heavy calcium carbonate processing, building materials and chemical industry, coal, ceramics, cement, etc.

Top 5 Advantages of LUM Vertical Roller Mill

High grinding efficiency, little pollution to the final products.

Advanced, efficient and energy-saving powder-concentrating technology.

Secure and efficient operating principles, intelligent operating system.

Convenient and easy to maintenance.

Environmental friendly.

Technical Data

Model Specification Name	LUM1125X	LUM1232X	LUM1436X
Intermediate diameter of the millstone （mm）	1100	1200	1400
Quantity of the rollers（piece）	3	3	3
Granularity of the feeding material D90（mm）	< 10 Max. 15mm	< 10 Max.15mm	< 10 Max.20mm
Moisture of the feeding material	< 3%
Capacity （t/h）	5~14	7~16	9~18
Fineness（mm）	Generally in 0.045-0.02, the finest can reach 0.01.
Power of the main motor（KW）	250	315	355
Power of multiple powder concentrator & quantity	15KW×5	15KW×7	15KW×7
