Processing materials: river stone
Feeding size: ≤630mm
Output size: 5mm, 10mm, 20mm, 38mm
Project Capacity: 200-250T/H
Application areas: construction and building materials

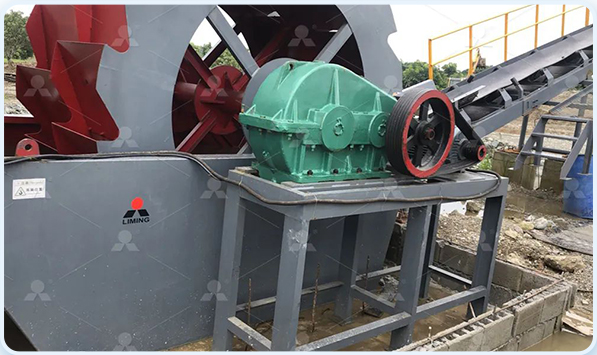

Equipment configuration: NK75J Mobile Jaw Crusher NK300HS Mobile Cone Crusher 、NK200S Mobile Screening Plant 、 XSD3016 sand washing machine

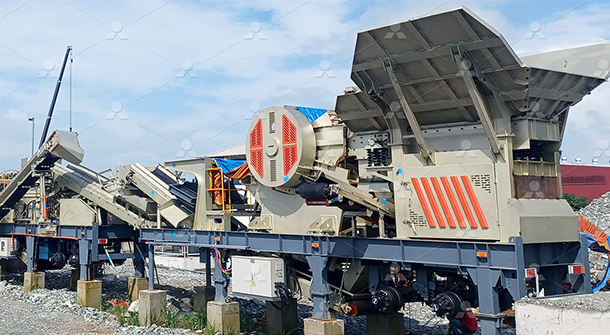

The first step: Send pebbles below 630mm to the NK75J Mobile Jaw Crusher station for primary crushing.
The small and medium-sized materials slip into the main belt conveyor through the grate hopper of the feeder, and enter the next stage together with the crushed materials from the jaw crusher.

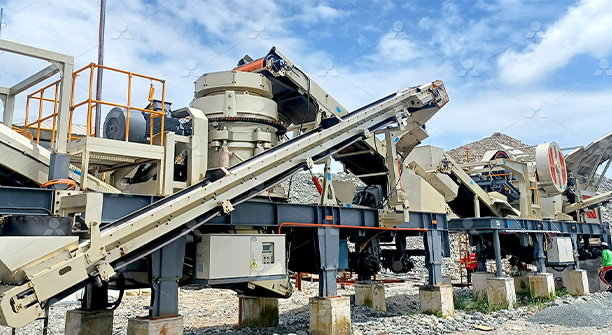

The second step:The NK300HS Mobile Cone Crusher with pre-screening function takes on the important task of secondary crushing.
The materials crushed in the primary stage are transported by a belt conveyor to the HPT300 hydraulic cone crusher for secondary crushing. The discharged materials are pre-screened, and the aniseed is returned to the cone crusher for continued crushing. Aggregate that meets the particle size requirements is transported to the finished product screening vehicle.
The third step

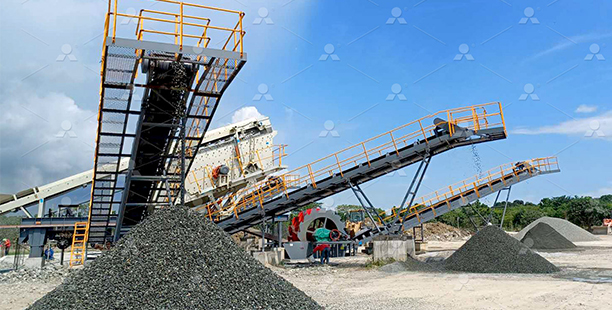

After cleaning and screening by the NK200S-3 screen car wash, clean aggregates of different specifications are sent to the finished product pile.

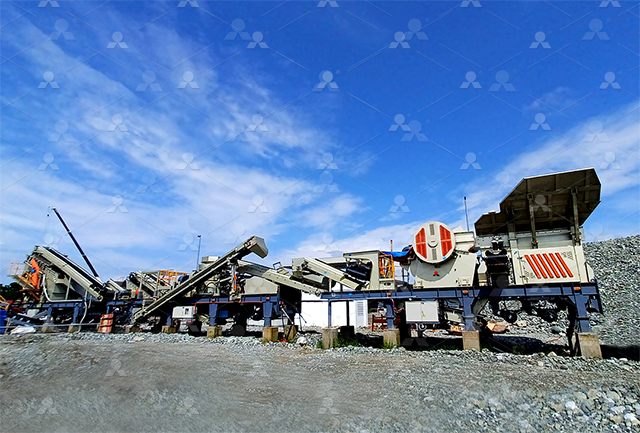

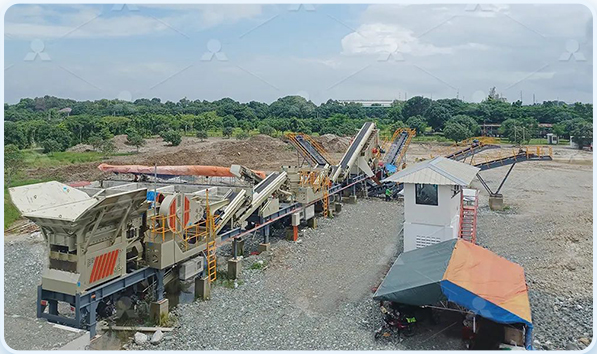

The equipment occupies a small area
The entire production line has a compact layout. Liming Heavy Industry's multiple types of equipment run through the entire process of river stone crushing, material screening and finished product screening and washing. This mobile production line provides high-quality sand and gravel aggregates for local infrastructure construction.

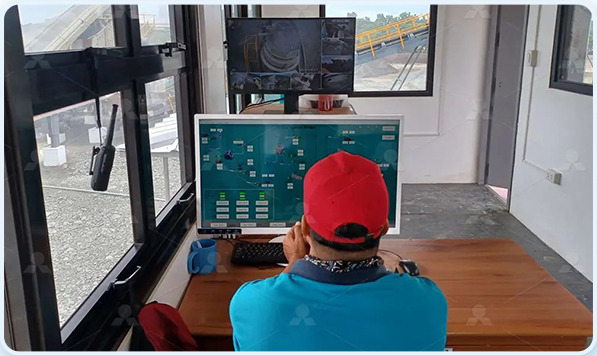

High degree of intelligence
This mobile production line has a high degree of intelligence: the project uses a big-brand touch screen and an intelligent industrial computer, which has a high degree of automation and can easily realize one-click start and stop of the equipment and online monitoring; it has strong comprehensive configuration: soft start, iron remover, and automatic lubrication device. It also provides assistance for the long-term stable operation of the equipment.
Good quality finished product
The high-quality crushing products ensure the particle shape and gradation of the aggregates, and the spray device in the water washing process improves the cleanliness of the finished products and meets the local requirements for high-quality concrete use.
Since the project was put into operation, this mobile production line has been fully recognized by customers for its stable operation, easy operation and maintenance and excellent finished product grain shape, and has also become a model project for local river stone crushing.
