VUS Aggregate Optimization System
Capacity: 100-550TPHVUS aggregate optimization system is a tower-type fully enclosed equipment producing machine-made sand. It integrates sand making, stone shape optimization, stone powder content control, gradation adjustment, water content control and environmental protection together.
What VUS Aggregate Optimization System Plant Can do ?
Limestone
Granite
Basalt
Processed Materials: Limestone, granite, basalt, andesite, quartz, silica, volcanic rock, marble, river stone, gravel, pebble, dolomite, sandstone, pozzolana, mountain stone, ballast, feldspar, Iron ore, copper ore, gold ore, manganese ore, etc.
Output Size(mm): such as 20-40mm stone, 10-20mm stone, 5-10mm aggregate, 0-5mm sand.
Widely Applications
Mechanism (artificial) sand making, stone shaping. Provide high quality aggregate for highway, railway, building material, municipal construction, hydropower dam construction, mixing and batching plant, etc.
Top 5 Advantages of VUS Aggregate Optimization System
Due to the integrated screening machine's modular control screen, which combines vibrating screening, material distribution, and air classification functions, the finished sand gradation and stone powder content can be adjusted at any time by regulating the negative pressure and distributor settings without changing the screen mesh, achieving high screening efficiency.
The system uses a negative-pressure dust collector combined with fully enclosed, sealed operation throughout the entire process. From the ore powder silo to the powder tanker, the entire conveying process ensures no dust emission on site. Moreover, the dry production process requires no water washing, so no wastewater or sludge treatment issues arise. All environmental indicators meet national standards.
An integrated electronic control system enables online monitoring and adjustment of the entire equipment's operation. It features one‑key start/stop, fault alarms, emergency stop, and automatic stabilization of operating parameters, ensuring the quality of the finished sand and smooth, stable production line capacity.
The finished sand undergoes three stages of optimization: high‑frequency "stone‑on‑stone" impact shaping in the VU impact crusher, high‑speed grinding, and cascade grinding & brushing in the particle optimizer. Through sufficient crushing and polishing, the sand grains become full, with a rounded surface and uniform thickness. The gradation, particle shape, and powder content of the sand are significantly improved. The proportion of fine sand (0.15-0.6 mm) increases substantially, while the proportion of coarse sand (2.36-4.75 mm) decreases. The powder content can be freely adjusted within the range of 3-15%.
Technical Data
| Model | VUS301 | VUS501 | ||
|---|---|---|---|---|
| Sand Making | Sand Shaping | Sand Making | Sand Shaping | |
| Input Size (mm) | 0-40 | 0-40 | ||
| Input Amount (t/h) | 100 | 300 | 150 | 550 |
| Sand Output (t/h) | 70-90 | 0-240 | 110-135 | 0-440 |
| Stone Powder Content (adjustable) (mm) | 3-15% | 3-15% | ||
| Power (kW) | 622 | 966 | ||
| Dimension L*W*H (m) | 21×8×27.5 | 21×10×30.2 | ||
Successful Project Case

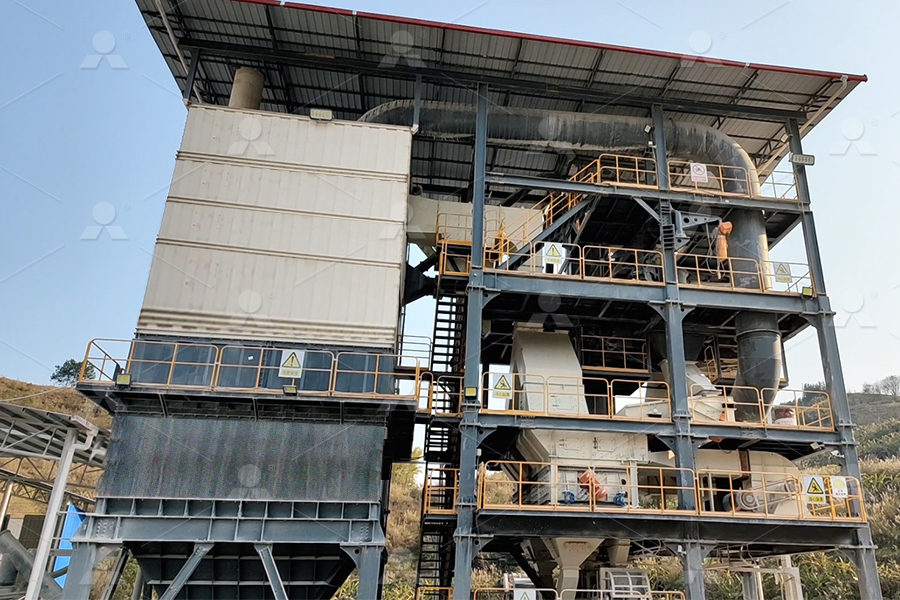

120T/H VUS Aggregate Optimization System Project
- Equipment: VU150 Aggregate Optimization System , vertical bucket elevator, pulse dust collection system, and PLC integrated electronic control system.
-
Consulting
- Processed material: Limestone
- Capacity: 120 T/H
- Input Size: ≤ 15 mm
- Output Size: 0 - 4.75 mm (Premium manufactured sand)
- Application: High-grade commercial concrete batching plants, key infrastructure projects, and precast concrete component processing.
